NEW!! High Quality China Led Street Light AGSL16 !
Product Description
NEW!! High Quality China Led Street Light AGSL16 !

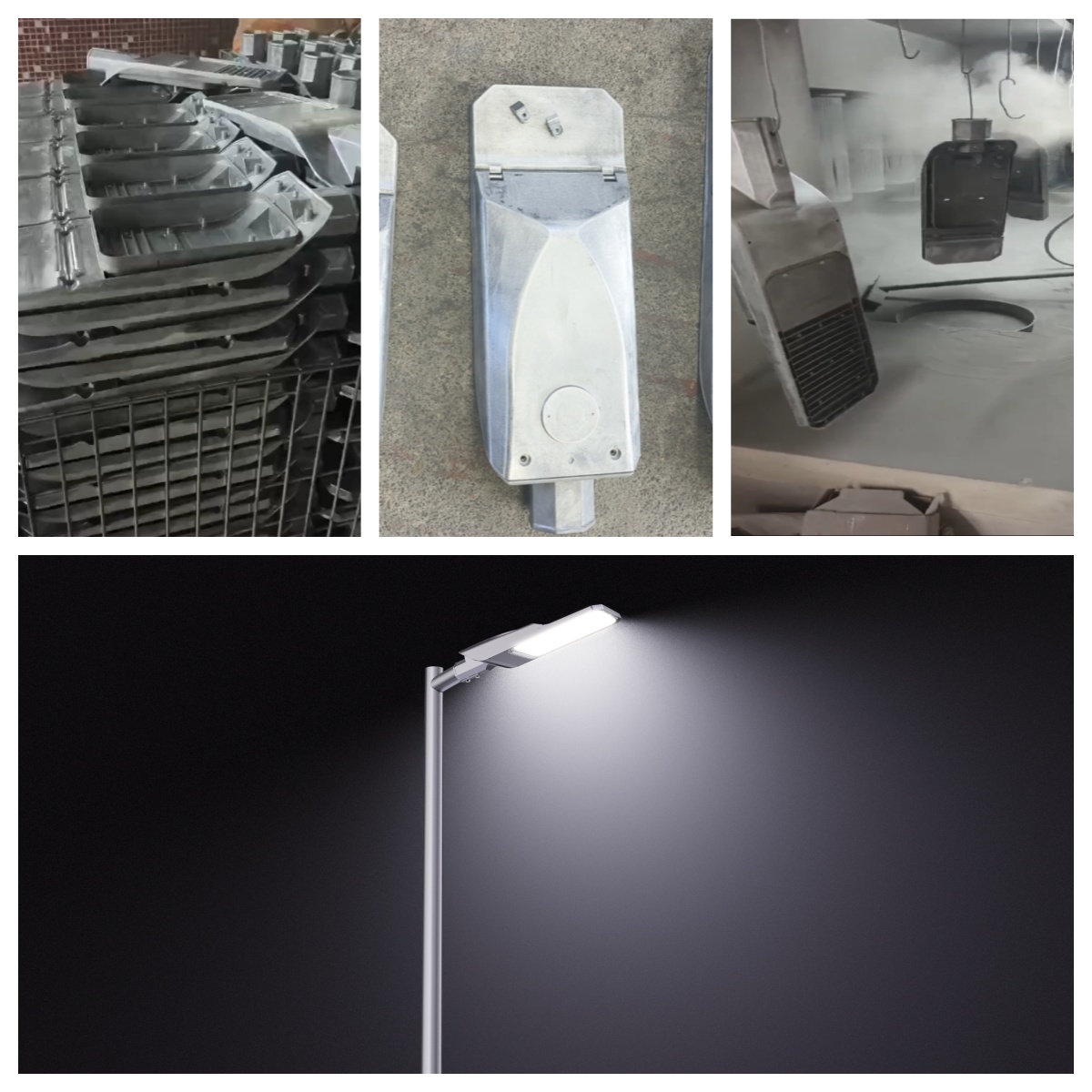

- Completely independent design, which include the heat sink, PC lens and frame. To make your product more unique and attractive. Meanwhile, the light source are package by our own factory. Quality control will be more stable.
-Adopt famous Lumileds 5050 chip inside, high efficiency can up to 130 lm/w.
- Die-casting housings, streamline heat sink with good heat dissipation
- offer 5 years warranty. Price is more competitive than others on the market.
-Short lead time, sample is 3-5 days; Bulk order is 10-15 days based on quantity. To be your firm supporter.
-Support Photocell sensor, Zigbee, solar system and 0-10V dimming, make the lamp smart and more energy saving.
Specification
MODEL | AGSL1601 | AGSL1602 | AGSL1603 |
System Power | 30W-60W | 80W-120W | 120W-200W |
Luminous Flux | 4200lm /7000lm | 11200lm /16800lm | 21000lm /28000lm |
Lumen Efficiency | 180-200 lm/W | ||
CCT | 2700K-6500K | ||
CRI | Ra≥70 (Ra>80 optional) | ||
Beam Angle | Type II-M(CUT-OFF) | ||
Input Voltage | 100-240V AC(277-480V AC optional) | ||
Power Factor | ≥0.95 | ||
Frenquency | 50/60 Hz | ||
Surge Protection | 6kv line-line, 10kv line-earth | ||
Dimmable | Dimmable(1-10v/Dali /Timer/Photocell) | ||
IP ,IK Rating | IP66, IK09 | ||
Opreating Temp | -20℃ -+50℃ | ||
Lifespan | L70≥50000 hours | ||
Warranty | 5 Years | ||
Product Dimension | 455*190*90mm | 533*190*90mm | 620*190*90mm |
DETAILS
![AGSL16 LED Street Light Spec-2024.0528_00](http://www.allgreenlux.com/uploads/AGSL16-LED-Street-Light-Spec-2024.0528_00.jpg)
![AGSL16 LED Street Light Spec-2024.0528_01 - 副本](http://www.allgreenlux.com/uploads/AGSL16-LED-Street-Light-Spec-2024.0528_01-副本.jpg)
![AGSL16 LED Street Light Spec-2024.0528_01](http://www.allgreenlux.com/uploads/AGSL16-LED-Street-Light-Spec-2024.0528_01.jpg)
![AGSL16 LED Street Light Spec-2024.0528_02 - 副本](http://www.allgreenlux.com/uploads/AGSL16-LED-Street-Light-Spec-2024.0528_02-副本.jpg)
![AGSL16 LED Street Light Spec-2024.0528_02](http://www.allgreenlux.com/uploads/AGSL16-LED-Street-Light-Spec-2024.0528_02.jpg)
Clients Feedback
![Clients' Feedback (2)](http://www.allgreenlux.com/uploads/Clients-Feedback-23.jpg)
Application
AGSL16 LED Street Light Application: streets, roads, highways, parking lots and garages, residential lighting in remote areas or areas with frequent power outages etc.
![AGSL16 LED Street Light Spec-2024.0528_03](http://www.allgreenlux.com/uploads/AGSL16-LED-Street-Light-Spec-2024.0528_03.jpg)
PACKAGE & SHIPPING
Packing: Standard Export Carton with Foam inside, to well protect the lights. Pallet is available if needed.
Shipping: Air/Courier: FedEx,UPS,DHL,EMS etc. as per clients’ need.
Sea/Air/Train shipments all are available for Bulk Order.
![Package&Shipping (1)](http://www.allgreenlux.com/uploads/PackageShipping-14.jpg)
